Solid brake kit 265mm - Speedparts Sweden

We have your SAAB and Volvo in parts

Volvo740Brakes 740Rear braeks 740Solid brake kit 265mm

The image below is interactive. Click on the area marked in yellow that matches the part you need.

How can you tell the difference between Girling and ATE brake system?

Let's figure it out together.
On some parts, it is usually written on the part itself, but it can be different on the same year model of the vehicle.
There is usually a G on the caliper from Girling, but that can by difficult to see it on old or used calipers.

However, it is easy to distinguish between Girling's and ATE's brake systems.
A easy way is to look at how the brake pads are mounted.

Girling: padsare fixed with two pins that are held in place by a R-shaped locking pins
Between the pins, a spring holds each pad in place. The casting of the brake caliper is rather oblong.

ATE: padsare fixed by two pins that are tapped into the brake caliper.
A springy cross-shaped piece of steel holds the pads between the pins.
The casting of the brake caliper is reather round.

Good luck!

Brake discs

Filters

One article

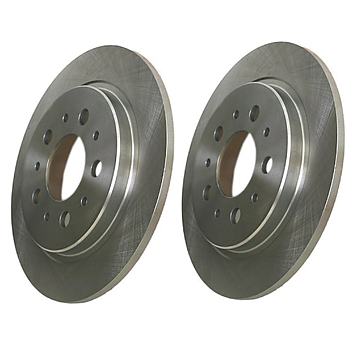

Brake discs rear Volvo 960, 760, 940, 740, with multilink, solid disc

43511327

•Volvo 760 1982-1990
•Volvo 960 1991-1994
•Med multilink
•Solida skivor

484 SEK per pair

Brake pads

Filters

3 articles

Brake pads rear (2)

43511824

•Volvo 240 1974-1993
•Volvo 740/760 1983-1992
•Volvo 940/960 1991-1998
•Volvo 740/760 1983-1992
•Volvo C70 1997-2000
•Volvo V70 1997-2000
•Volvo S70 1997-2000
-For vehicles with ATE brakes bak (lock pines with expander locks)
-Exept vehicles with multilink

249 SEK per piece

Brake kit set rear

99512003

•Volvo 240 1974-1993
•Volvo 260
•Volvo 740 1983-1992
•Volvo 760 1982-1990
•Volvo 940 1992-1998
•Volvo 960 1991-1997
-ATE

84 SEK per piece

Brake pads rear (2)

43511829

•Volvo 740/960 med multilink bakaxel
•Volvo XC70 1997-2000 Upp till chassinr 587441
•Volvo V70 AWD 1997-2000 Upp till chassinr 588639
•Volvo V70R 1997-2000 Upp till chassinr 587596
•Volvo S70 utan nivåmat 1997-2000 Upp till chassinr 596635
•Volvo S70 med nivåmat 1997-2000 Upp till chasdinr 598922
•Volvo C30 med 1,6l motor
-Bilar med Girling bromsar bak

314 SEK per piece

Repairing kit

Filters

6 articles

Repair kit caliper, rear (4)

43514316

•Volvo 740/760/780 1982-1992
•Volvo 850 1982-1997
•Volvo 940 1992-1998
•Volvo 960 1981-1997
•Volvo C70 1997-2005
•Volvo S70 1997-2000
•Volvo V70/XC70 1997-2000
-ATE Diameter: 38

149 SEK per piece
