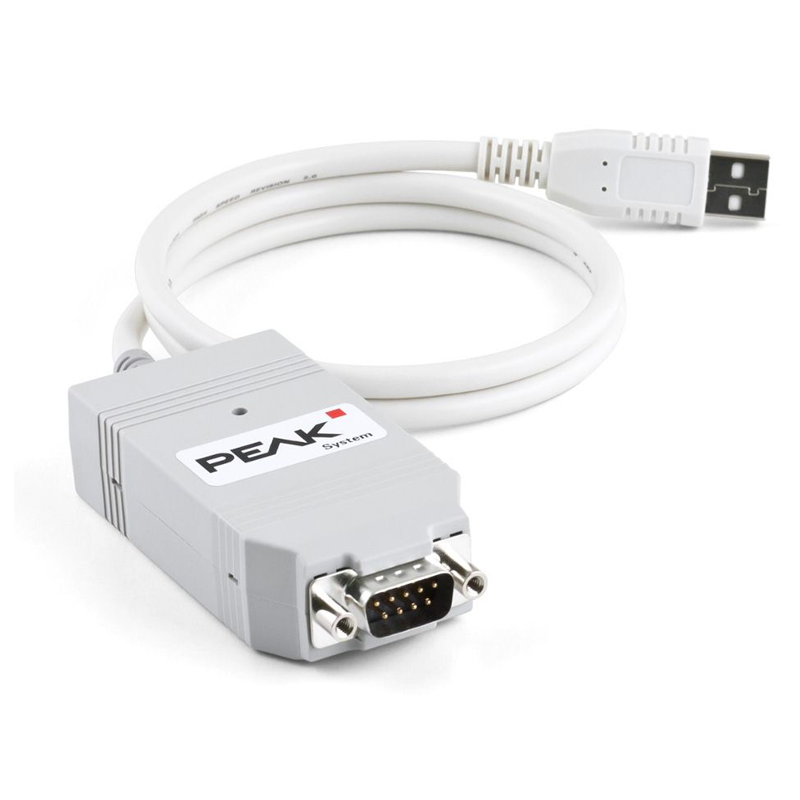

PCAN-Usb Interface
3,799 SEK per piece
The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications. The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side. The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.
- Secure payment by card
- Do you have any questions. Contact us via webshop
Original number is just for referens
- More info:Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0) High-speed CAN connection (ISO 11898-2) Bit rates from 5 kbit/s up to 1 Mbit/s Time stamp resolution approx. 42 µs Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID) CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 303-1) NXP SJA1000 CAN controller, 16 MHz clock frequency NXP PCA82C251 CAN transceiver 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022) Voltage supply via USB Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
Description
Article no.: PK5012
