Add misc light
295 SEK
- Secure payment by card
- Do you have any questions. Contact us via webshop
Original number is just for referens
- Car model:SAAB 9-3 2007-2012

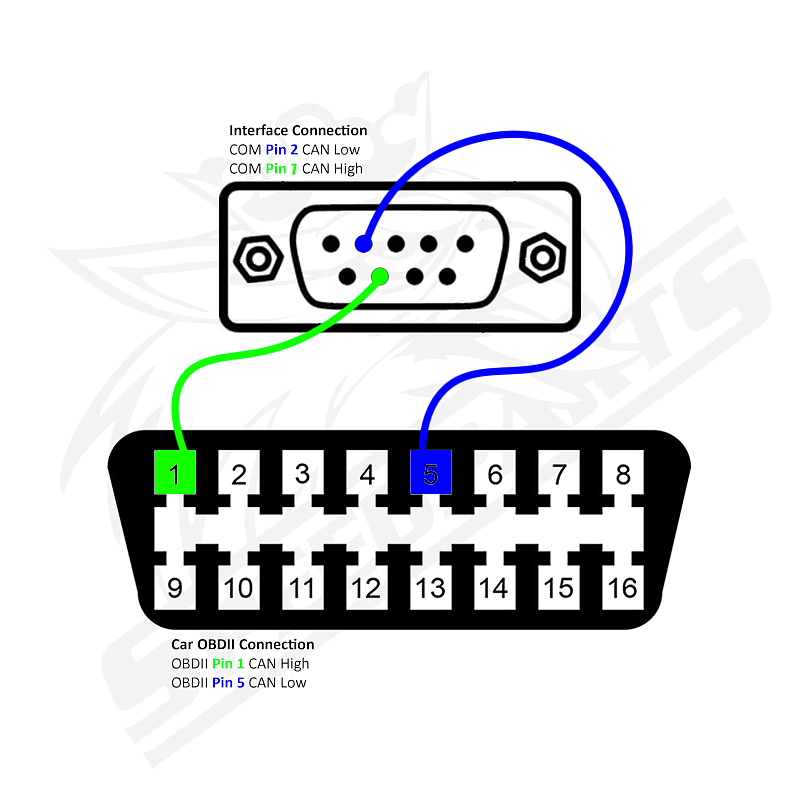

- Ref:OBD kabel low speed (pin1 & 5) blå OBD connects to interface like this Can high pin 7 connects to pin 1 in cars OBD socket Can low pin 2 connects to pin 5 in cars OBD socket GM MDI Controls internaly what pin in obd socket to use
- Spec:Activate misc light at pin 3 at the accessories socket near to UEC unit at left side in engine bay, This cabel goes directly to your misc light positive side on lamp so you don´t need any conection to electrical system beside ground cabel to lamp. Relay needs to be installed at postion markt R5 in UEC you allso ned to have a fuse at position 24 in UEC. At the panel on right side of steering wheel you use the button markt with a - as master switch for misc light.
- More info:CAN interface is required to perform programming and is not included in the price. Loan interface can be sent against a deposit cost of SEK 1,500 which is credited after return. A link to the manual and program can be found in end of article page. A separate email with the license file will be sent to your email. Can interface supported are: GM MDI Kwaser Peak system can interface Lawicel CAN USB ETAS Can interface Vector Can interface
- Contains:Windows 64bit PC Software to program UEC/BCM/MIU. Own or borrowed interface required. The license file that is sent to you via email after ordering is locked to the registration/Vin number you enter when ordering. This service is not subject to cancellation or return rights.
Description
Article no.: 315.3020
•Add misc light
<
br>SAAB 9-3 2007-2012
Files and media
 | ECU Configiurator manual and download page |
